Product Overview

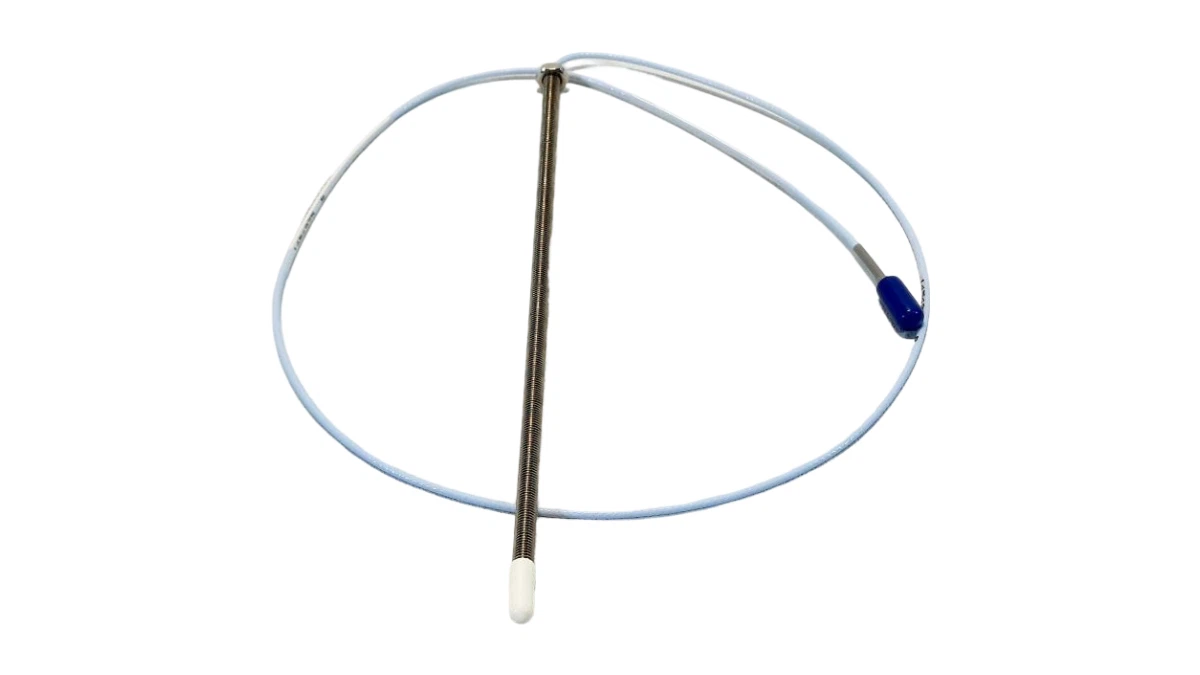

Bently Nevada 330192-10-80-90-05 yog 3300 XL 8 mm Extended Temperature Range (ETR) armored eddy tam sim no nyob sib ze sojntsuam, muab raws li tus qauv nrog 3/8-24 UNF xov. Qhov kev sojntsuam no yog qhov hloov kho dua tshiab raws li 3300 Series, yog siv ua ke nrog 3300 XL Proximitor, thiab txhawb kev sib hloov pauv nrog tus qauv-kub thiab tsis yog XL ntawm tib lub koob.
Khoom Specifications
| Parameter | Kev piav qhia |
|---|---|
| Qauv nab npawb | 330192-10-80-90-05 |
| Yam qauv | 330192-10-80-90-NPE |
| Kev sojntsuam hom | Eddy Current Proximity Probe |
| Series Qauv | 3300 XL Series |
| Kev sojntsuam Dia | 8mm ib |
| Xov Specification | 3/8-24 UNF |
| Cable Sheath | Nrog Armor |
| Extended Temperature Range (ETR) Systems (5 thiab 9 meter) | rhiab heev: 7.87 V / mm (200 mV / mil) ± 6.5% |
| Yam tsawg kawg nkaus Lub Hom Phiaj (Lub Hom Phiaj Loj) | Txoj kab uas hla: 15.2mm (0.6 nti) |
| Yam tsawg kawg nkaus ncej | 50.8mm (2 nyob rau hauv) |
Daim Ntawv Thov Tshwj Xeeb
- Thaum siv raukeyphasor lossis overspeed ntsuas, xa mus rau cov lus qhia tshwj xeeb rau kev thov.
- Cov khoom sivsilicone daim kab xevtsis pom zoo siv los ua ib tugconnector foobthaum raugturbine roj ib puag ncig.
Cov khoom Fuction
- Extended Temperature Range:330192-10-80-90-05 ETR sojntsuam cable thiab txuas, nrog rau ETR txuas ntxiv cable, tuaj yeem tiv taus qhov kub thiab txias txog 260 degree. Txawm li cas los xij, qhov ntsuas qhov ntsuas nws tus kheej tseem yuav tsum tau khaws cia qis dua 177 degree.
- Nqaim Sab -Saib Yuav Tsum Tau:Rau 330192-10-80-90-05, 3300 NSv™ nqaim-saum sensor system yuav tsum raug xaiv.
- Kev ua haujlwm thiab kev tu vaj tse:330192-10-80-90-05 tuaj yeem siv rau hauv cov ntawv tshwj xeeb xws li kev tiv thaiv overspeed thiab kev ntsuas ceev, muab cov ntaub ntawv txhawb kev tswj kev nyab xeeb.
Cov khoom siv
Bently Nevada 330192-10-80-90-05 eddy tam sim no sojntsuam systemtuaj yeem siv rau:
1.Gearboxes thiab siab - tsav tsheb ceev: Saib xyuas cov txheeb ze kev co ntawm iav ncej thiab tshuaj xyuas cov khoom siv mesh zaus.
2.Reciprocating compressors: Saib xyuas txoj hauj lwm tom qab ntawm crosshead pins lossis piston rods (yuav tsum tau tshwj xeeb cov txheej txheem installation) los soj ntsuam kev hnav.
3.Small ncej inch daim ntaub ntawv: Qhov system no tuaj yeem xaiv rau cov ntawv thov uas muaj qhov tsawg kawg nkaus txoj kab uas hla ntawm 50.8 hli thiab lub hom phiaj cheeb tsam loj dua 15.2 hli.
